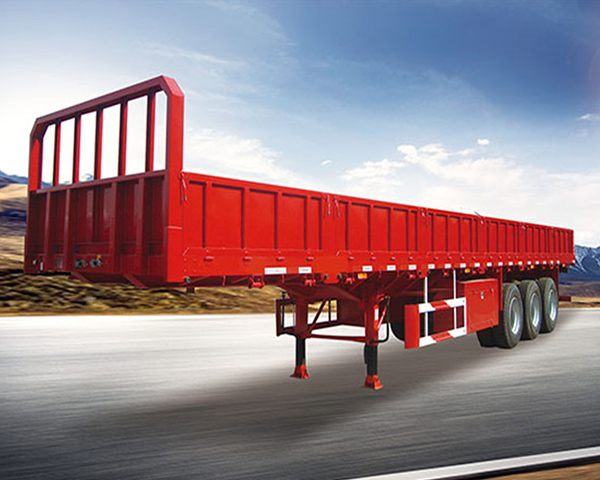

Cargo Semi Trailer

Date：2019-03-09 10:25:01 Clicks：

Characiters:

★★According to the market demand, high-strength steel and ordinary steel are combined. The longitudinal beam, column and through beam are made of high-strength steel. The side beam is made of standard channel steel. The weight of the whole vehicle is less than 6 tons, which greatly improves the transportation efficiency of users. .

★★The beam use flame straightening, "upper arch"structure enhance the vehicle’s, improves the load carrying capacity and avoid deformation during heavy load.

★★Remark: This vehicle is not suitable for transporting goods with concentrated stress.

Model	SZM9400LECargo Semi Trailer
Trailer Size(L x W x H)	13000,12500,12000x2550,2500x3500,3300,3100,2900,2800,2700
Cargo Semi Trailer (L x W x H)(mm)	12850,12350,11850 x2450,2430,2420,2400,2380,2360,2350,2320 x600,500
Total Weight（kg）	40000
Rated Load(kg)	33500,33700,34000
Tare Weight(kg)	6500,6300,6000
Saddle Bearing Weight(kg)	16000
Rear Overhang	2300,2100,1800
Departure Angle(°)	14,15,16
Axles load(kg)	24000（3x Axles）
ABS	Anti-lock braking system
Axle Quantity	3
Wheel Base	6880+1310+1310,6780+1310+1310, 6680+1310+1310,6480+1310+1310,6280+1310+1310
Tyre Quantity	12
Tyre Specification	11.00R20 12PR,12R22.5 12PR,11R22.5 12PR
Wheel Track(mm)	1840/1840/1840
Leaf Spring	-/3/3/3,-/4/4/4,-5/5/5,-7/7/7,-/8/8/8,-/10/10/10,-/12/12/12,-/13/13/13,-/16/16/16
