★★Design: Design according to customers’ cargo, simple and applicable structure. Easy to disassemble. Reduce the costs and create more profit for users.
★★Material: Longitudinal girders, column and transverse girders is made by high-strength steel. Side bean is made by standard channel steel. The operation weight is no more than 6tons, which enhanced user’s transport benefits.
★★Craft: The beam use flame straightening. Arch up structure enhance the vehicle’s loading ability and avoid deformation with heavy load.
★★Remark: This vehicle can’t use for transporting goods with concentrated stress.
|
Model |

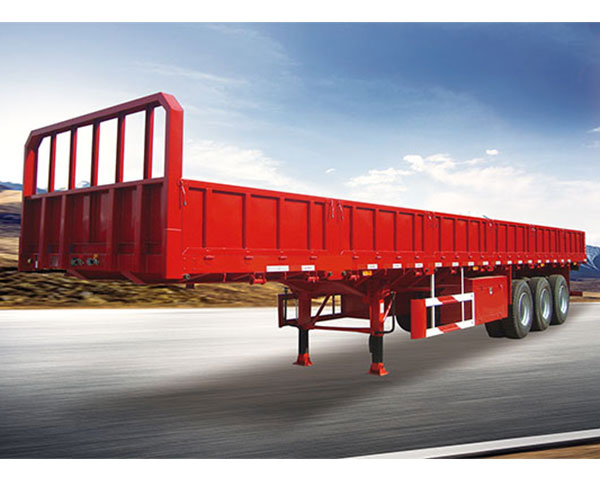

SZM9400L Semi Trailer |
|
Outside Dimension(mm) |
13000,12500,12000x2500,2500x2700,2800,2900,3000,3100,3300,3500 |
|
Cargo Semi Trailer(mm) |
12850,12350,11850x2300,2350,2380,2400,2430,2450,2470x550,600 |
|
Total weight(kg) |
40000 |
|
Rated Load(kg) |
34000,34250,34500 |
|
Tare Weight(kg) |
6000,5750,5500 |
|
Saddle Bearing Weight(kg) |
16000 |
|
Rear overhang（mm） |
2300,2200,2100 |
|
Departure Angle(°) |
14,15,16 |
|
Axles load(kg) |
24000 （3x Axles） |
|
ABS |
Anti-lock braking system |
|
Axle Quantity |
3 |
|
Wheel Base |
3880+1310+1310,6780+1310+1310,6880+1310+1310,6480+1310+1310,6280+1310+1310 |
|
Tyre Quantity |
12 |
|
Tyre specification |
11.00R20 12PR, 12R22.5 12PR |
|
Wheel Track(mm) |
1840/1840/1840 |
|
Leaf Spring |
-/4/4/4,-5/5/5,-/7/7/7,-/8/8/8,-/9/9/9,-/10/10/10,-/13/13/13, -/16/16/16 |
